开关

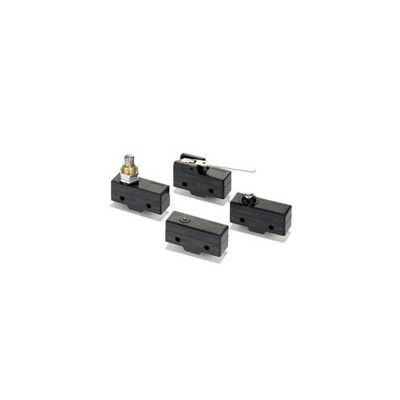

基本型（一般型）
| 分类 | 标准型 | 高灵敏度 | 超高灵敏度 | 高容量 | 微小负载 | |||
|---|---|---|---|---|---|---|---|---|
| 驱动杆 接点间隔 | G (0.5mm) | H (0.25mm) | H2 (0.20mm) | E (1.8mm) | H (0.25mm) | |||
| 端子的种类*1 | 型号 | 型号 | 型号 | 型号 | 型号 | |||
| 针状柱塞型 |
|
| Z-15G | Z-15H | Z-15H2 | Z-15E | Z-01H | |
| Z-15G-B | Z-15H-B | Z-15H2-B | Z-15E-B | Z-01H-B | |||
| 弹簧细柱塞型 |
|
| Z-15GS | Z-15HS | — | — | Z-01HS | |
| Z-15GS-B | Z-15HS-B | Z-01HS-B | |||||
| 弹簧短柱塞型 |
|
| Z-15GD | Z-15HD | — | Z-15ED | Z-01HD | |
| Z-15GD-B | Z-15HD-B | Z-15ED-B | Z-01HD-B | ||||
| 面板安装柱 塞型 |
| OP小 |
| Z-15GQ3 | — | — | — | — |
| Z-15GQ3-B | |||||||
| OP中 |
| Z-15GQ | Z-15HQ | Z-15EQ | Z-01HQ | |||
| Z-15GQ-B | Z-15HQ-B | Z-15EQ-B | Z-01HQ-B | ||||
| OP大 |
| Z-15GQ8 | — | — | — | |||
| Z-15GQ8-B | |||||||
| 面板安装滚珠柱塞型 |
|
| Z-15GQ22 | Z-15HQ22 | — | Z-15EQ22 | — | |
| Z-15GQ22-B | Z-15HQ22-B | Z-15EQ22-B | |||||
| 面板安装横向滚珠柱塞型 |
|
| Z-15GQ21 | Z-15HQ21 | — | Z-15EQ21 | — | |
| Z-15GQ21-B | Z-15HQ21-B | Z-15EQ21-B | |||||
| 板簧型 |
|
| Z-15GL | — | — | — | ||
| Z-15GL-B | |||||||
| 滚珠板簧型 |
|
| Z-15GL2 | — | — | — | ||
| Z-15GL2-B | |||||||
| 短摆杆型 |
|
| Z-15GW21 | — | — | — | ||
| Z-15GW21-B | |||||||
| 摆杆 |
| OP小 |
| Z-15GW | Z-15HW | — | — | — |
| Z-15GW-B | Z-15HW-B | ||||||
| OP中 |
| Z-15GW3 | — | |||||
| Z-15GW3-B | |||||||
| OP大 |
| Z-15GW32 | ||||||
| Z-15GW32-B | |||||||
| 小型摆杆型 |
|
| Z-15GW4 | Z-15HW24 | — | — | — | |
| Z-15GW4-B | Z-15HW24-B | ||||||
| 小型线形摆杆型 |
| OP小 |
| — | Z-15HW78 | — | — | — |
| Z-15HW78-B | |||||||
| OP大 |
| Z-15HW52 | ||||||
| Z-15HW52-B | |||||||
| 滚珠短摆杆型 |
|
| Z-15GW22 | Z-15HW22 | — | Z-15EW22 | Z-01HW22 | |
| Z-15GW22-B | Z-15HW22-B | Z-15EW22-B | Z-01HW22-B | ||||
| 横向滚珠短摆杆型 |
|
| Z-15GW49 | — | — | — | — | |
| Z-15GW49-B | |||||||
| 滚珠摆杆型 |
| 标准型 |
| Z-15GW2 | Z-15HW2 | — | — | — |
| Z-15GW2-B | Z-15HW2-B | ||||||
| 大型 滚珠 |
| Z-15GW25 | — | — | — | |||
| Z-15GW25-B | |||||||
| 横向滚珠摆杆型 |
|
| Z-15GW54 | — | — | — | — | |
| Z-15GW54-B | |||||||
| 单向动作滚 珠短摆杆型 |
| 平行 |
| Z-15GW2277 | — | — | — | — |
| Z-15GW2277-B | |||||||
| 反向动作摆杆型*2 |
|
| Z-15GM | — | — | — | — | |
| Z-15GM-B | |||||||
| 反向动作 滚珠短摆杆型*2 |
|
| Z-15GM22 | — | — | — | — | |
| Z-15GM22-B | |||||||
| 反向动作 滚珠摆杆型*2 |
|
| Z-15GM2 | — | — | — | — | |
